Feed Pellet Mill
Feed pellet mill is very important for breeding industry, which will solve the troublesome of mixing feed for poultry every day. GEMCO specially designed small feed pellet mill for home use or small poultry. Most important, the feed pellets produced are a balanced pelletizer with rich nutrition, good palatability and high digestibility.
Raw Materials for Feed Pellet Mill
The raw material can be corn/maize, alfalfa, wheat bran, grass, rice, beans, oil cake, etc. Usually, large size raw materials should be pulverized by hammer mill. Protein or other nutrients can also be added to the raw powder.

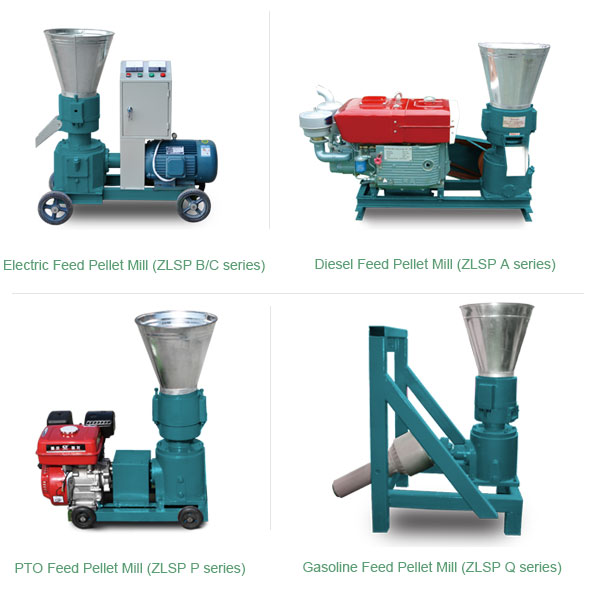

Main Types of Feed Pellet Mill
| MODEL | POWER | CAPACITY (kg/h) | G.W./N.W. | PACKING SIZE |
|---|---|---|---|---|
| ZLSP-D 120B | 3kw (3phase)/2.2 kw (Single phase) | 60-100 | 80/100 | 750x320x680 |
| ZLSP-D 150B | 4 kw (3phase) | 90-120 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kw (3phase) | 200-300 | 200/230 | 1650x820x1200 |
| ZLSP-D 230B | 11 kw (3phase) | 300-400 | 290/320 | 1050x480x930 |
| ZLSP-D 260B | 15 kw (3phase) | 400-600 | 320×360 | 1180x540x1000 |
| ZLSP-D 300B | 22 kw (3phase) | 600-800 | 350/380 | 1240x540x950 |
| ZLSP-D 150C | 4 kw (3phase) | 90-120 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kw (3phase) | 200-300 | 210/230 | 1050x550x830 |
| ZLSP-D 230C | 11 kw (3phase) | 300-400 | 290/320 | 1200x560x950 |
| ZLSP-D 260C | 15 kw (3phase) | 400-600 | 340/370 | 1240x580x1000 |
| ZLSP-D 300C | 22 kw (3phase) | 600-800 | 425/465 | 1300x620x1100 |
| ZLSP-D 120A | 8 Hp | 60-100 | 120/140 | 900x500x730 |
| ZLSP-D 150A | 8 Hp | 90-120 | 180/220 | 1000x500x750 |
| ZLSP-D 200A | 15 Hp | 200-300 | 210/240 | 1460x750x900 |
| ZLSP-D 230A | 22 Hp | 300-400 | 280/310 | 1560x850x1000 |
| ZLSP-D 260A | 30 Hp | 400-600 | 330/360 | 1200x500x1070 |
| ZLSP-D 300A | 55 Hp | 600-800 | 410/450 | 1220x600x1000 |
| ZLSP-D 150P | ≥8 Hp | 90-120 | 105/125 | 900*540*1020 |
| ZLSP-D 200P | ≥15 Hp | 200-300 | 210/230 | 1000*540*1020 |
| ZLSP-D 230P | ≥22 Hp | 300-400 | 290/320 | 1000*540*1020 |
| ZLSP-D 260P | ≥30 Hp | 400-500 | 340/370 | 1050*540*900 |
| ZLSP-D 300P | ≥55 Hp | 500-600 | 425/465 | 1100*540*1000 |
2 Recommended Feed Pellet Machine

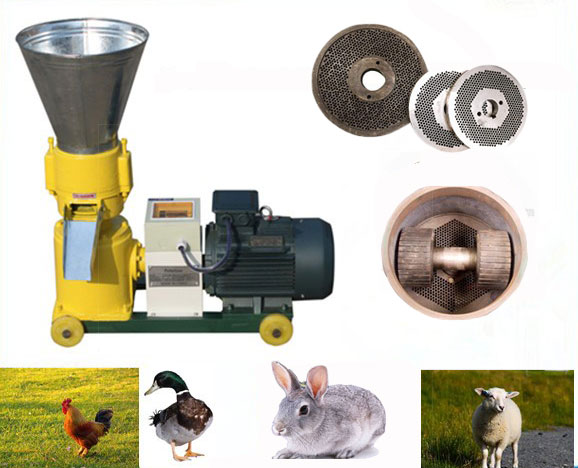

Electric Poultry Feed Pellet Mill
This electric poultry feed pellet mill for home use or poultry farm (eg. farms raising baby chicken by chick cage) is different from other feed pellet mills. It can make pellets with different diameters, farmers just need to replace different pellet mill die. Driven by electric motor makes it more convenient and environmentally friendly. Also, high temperature during the pelletizing can kill all kinds of parasitic ovum and other pathogenic microorganisms, reducing digestive system disease of poultry.

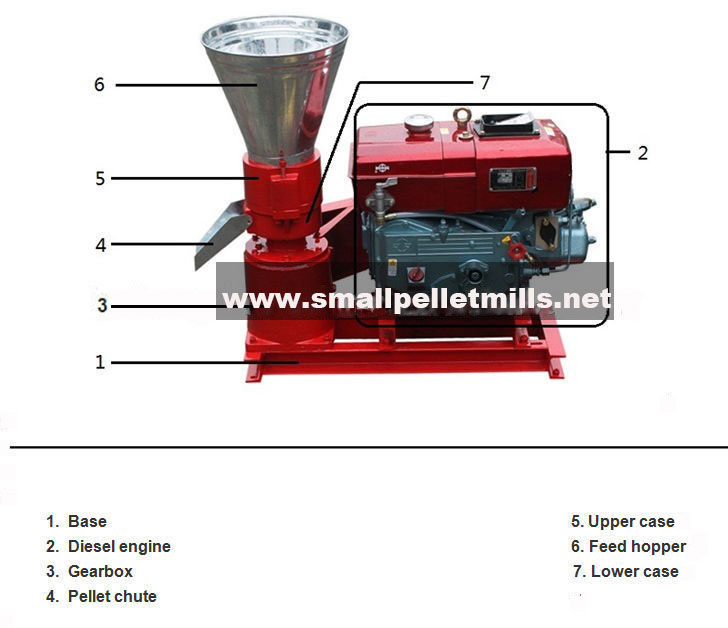

Diesel Flat Die Feed Pellet Mill
Diesel flat die feed pellet mill is widely used in small aquaculture, grain feed factory, farm, poultry farm, as well as individual farmers. Driven by a diesel engine, the diesel flat die pellet mill can run smoothly and with few noises, especially popular in the electricity lacking areas.
Tips and Warnings While Using a Diesel Flat Die Feed Pellet Mill
- Please carefully read the operation instruction and follow the technicians professional guidance before start running.
- Check the easy-wear parts and other components regularly to ensure normal operation.
- Avoid overloading production to guarantee a long service life of the equipment.
Features of Small Feed Pellet Mill
- Small size, light in weight, simple structure and easy to operation.
- High quality and cost performance.
- No need to add extra water to the powder feedstock before pelletizing.
- Low consumption, competitive price, long service life.
