Wood Pellet Mill
GEMCO specialized in high quality small pellet mills, apart from biomass pellet mill, feed pellet mill, wood pellet mill is our another hot saled pellet machine. Wood Pellet Mill is an ideal pelletizing machine mainly used for small-scale wood pellets production for home heating.
Recommended Wood Pellet Mills
Wood pellet mill can be divided into flat die wood pellet mill and ring die wood pellet mill. Ring die wood pellet mill is usually used for industry production or big scale farms. Today let’s mainly talks about flat die wood pellet mill, also called small wood pellet mill.
Electric Flat Die Wood Pellet Mill
| MODEL | POWER(kw) | CAPACITY | VOLTAGE | DIA.(mm) | DIMENSION(mm) |
|---|---|---|---|---|---|
| AMSPLM120 | 2.2 | Wood pellets 40-60 kg/h | single phase/three phase:220V 50HZ /380V 50HZ | 120 | 550*300*710 |
| AMSPLM200 | 7.5 | Wood pellets 110-140 kg/h | Three-phase voltage:380V 50HZ | 200 | 850*420*850 |
| AMSPLM300A | 15 | Wood pellets 220-280 kg/h | Three-phase voltage:380V 50HZ | 300 | 1200*520*1050 |
| AMSPLM300B | 18.5 | Wood pellets 250-300kg/h | Three-phase voltage:380V 50HZ | 300 | 1200*520*1050 |
| AMSPLM350A | 22 | Wood pellets 300-360 kg/h | Three-phase voltage:380V 50HZ | 350 | 1270*580*1150 |
| AMSPLM400 | 30 | Wood pellets 400-500kg//h | Three-phase voltage:380V 50HZ | 400 | 1350*600*1200 |
| AMSPLM500 | 55 | Wood pellets 700-800kg/h | Three-phase voltage:380V 50HZ | 500 | 1700*750*1450 |
| AMSPLM600 | 90 | Wood pellets 1200-1300kg/h | Three-phase voltage:380V 50HZ | 600 | 2100*900*1650 |
| AMSPLM700 | 132 | Wood pellets 1700-1800kg/h | Three-phase voltage:380V 50HZ | 700 | 2400*1050*1870 |

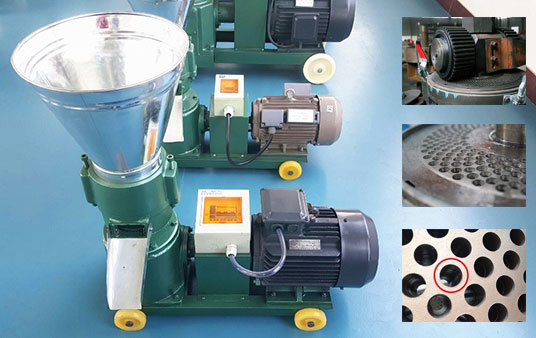

Roller Driven Flat Die Wood Pellet Mill Features
- Adopt screw center regulating structure, the clearance between rollers and pellet mill die can be adjusted freely.
- Adopts high precision gear transmission gearbox, ensuring a reliable and efficient pelletizing process.
- The electric control system is of international standard, accurate and stable.
- It is possible to view into the chamber when pelletizing, so you can solve problem in time.
- The die template and rollers are made of alloy steel. The hardness can be more than 50 after treatment.
PTO Wood Pellet Mill
PTO wood pellet mill is a kind of pellet making machine connected with a tractor and be powered by the tractor. This PTO wood pellet mill is a small pellet mill special designed for farm use.
| MODEL | POWER | DIE DIAMETER | SIZE OF DIE HOLE | CAPACITY | PACKING DIMENSION | MOISTURE CONTENT | WEIGHT |
|---|---|---|---|---|---|---|---|
| AMSKL120P | 6-10 hp | 120mm | 2.5-10mm | 40-60kg/h | 570*410*760mm | 12%-20% | 70/80KG |
| AMSL150P | 6-12 hp | 150mm | 2.5-10mm | 50-90kg/h | 570*440*760mm | 12%-20% | 90/100KG |
| AMSKL200P | 10-18 hp | 200mm | 2.5-10mm | 110-140kg/h | 1770*540*980mm | 12%-20% | 140/160KG |
| AMSKL230P | 18-28 hp | 230mm | 2.5-10mm | 150-190kg/h | 770*560*1020mm | 12%-20% | 170/190KG |
| AMSKL260P | 28-45hp | 260mm | 2.5-10mm | 220-280kg/h | 770*560*1150mm | 12%-20% | 200/230KG |
| AMSKL300P | 45-55hp | 300mm | 2.5-10mm | 300-360kg/h | 770*800*1160mm | 12%-20% | 280/300KG |
| AMSKL360 | 50-60hp | 360mm | 2.5-10mm | 300-380kg/ | 770*850*1160mm | 12%-20% | 310/320KG |
Why choose PTO wood pellet mill?
- Compared with other types of pellet mill, PTO wood pellet mill is smaller in volume and light in weight, the machine is movable.
- Low energy consumption and high efficient. Powered by the tractor, it can work continuously and use less energy.
- With reasonable design and compact structure. The PTO wood pellet mill is designed to be connected and disconnected easily.
- With a competitive price. Since the PTO wood pellet mill is without power engine, so the price the lower and the farmers can take advantage of their tractors to be used as the power.
Wood Pellet Mill Developing Trend
Wood pellet has gained its popularity as one of the mostly used renewable fuel sources in recent years; as a result, wood pellet manufacturing has become a sunrise industry, which means it is promising and profitable. Now in many countries, there are wood pellet manufacturing plants. It can make pellets from wood shaving, sawdust, wood chip, branches, logs, and so on.
Wood Pellet Making Process
The manufacturing of wood pellets includes the following steps:
Crushing—- Screening—- Drying—-Pelletizing—- Cooling—-Packing
